Trusted Tech Leader/ Case studies

Case study · Developer & content tools

Local-first outreach CRM with self-describing API

A single-port outreach CRM on SQLite with a registry-driven REST API, OpenAPI spec and CSV import, designed so an AI assistant can operate it.

Sector
Sales prospecting and freelance outreach
Category
Developer & content tools
Maturity
Working single-user tool; no automated tests found

At a glance

Who it's for
A solo consultant or freelancer tracking social-network outreach, proposals and follow-ups.
Core stack
React, Fastify, SQLite (libSQL), Drizzle ORM
What sets it apart
A personal CRM whose API documents itself, so both people and AI assistants can work the same pipeline safely.
On this page

What it looks like in use

The dashboard of a personal CRM: how many leads there are, who is at which stage, and who needs a follow-up today.

Outreach CRM
DashboardSearch
Total leads15
Today's follow-ups4
Won2
LinkedIn leads
Dana Whitfield
Northwind StudioConversation
Marcus Ellery
Harbor DentalEngaging
Priya Raman
Lumen LogisticsProposal
Tom Aldridge
Aldridge PrintLead
Export CSVNew lead
Follow-ups due today
Dana Whitfield
Send the proposal summaryDue
Marcus Ellery
Reply to his commentDue
Tom Aldridge
Send a connection requestDue
Priya Raman
Check the proposal landedDue
Tap a name to open the full recordDetails
Illustrative screen dashboard and lead list shown together; sample data, not client data

Real screens from the working product (sample data)

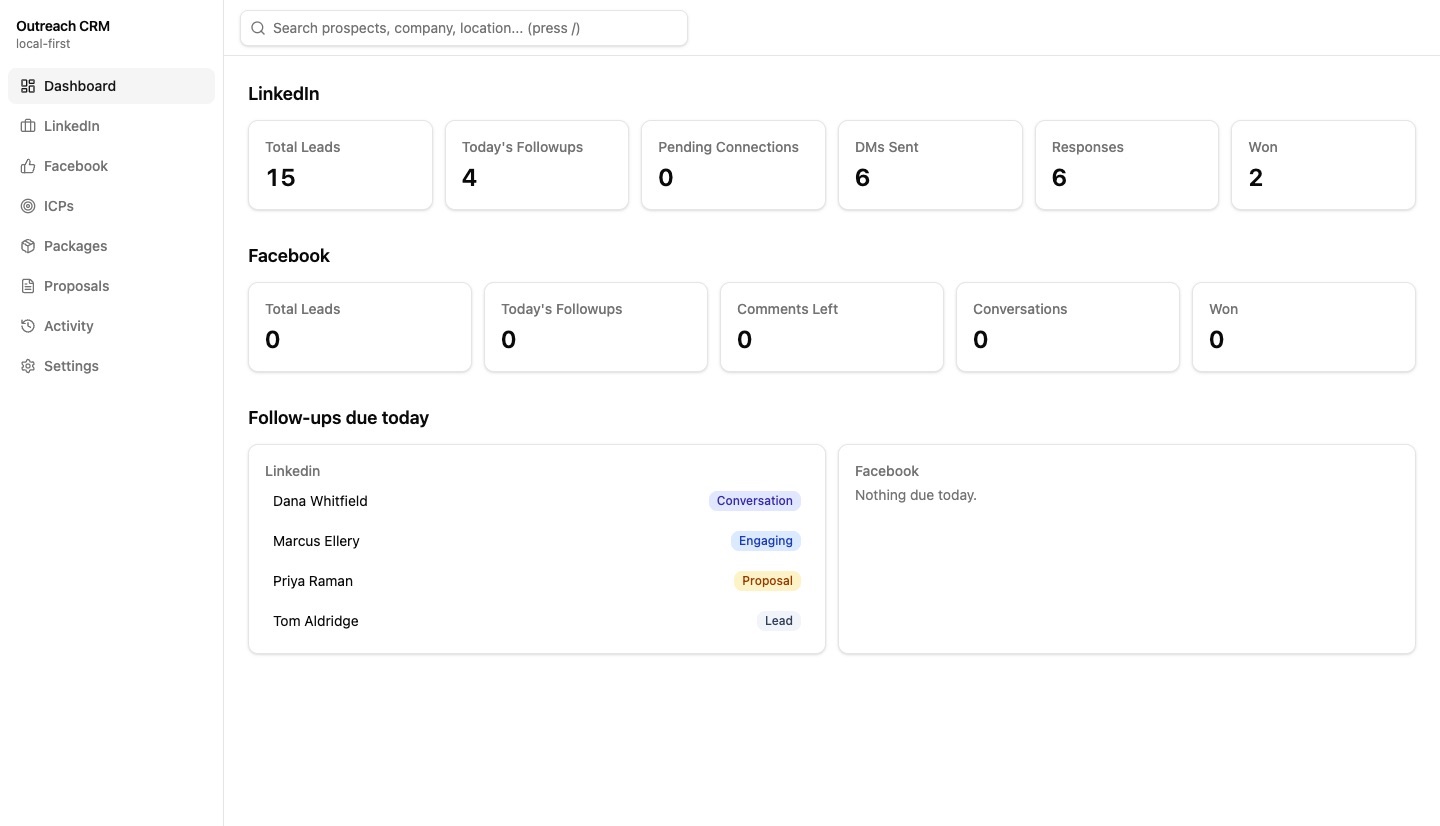

A dashboard with lead counts and a list of people to follow up with today.
Real screen, sample data A personal dashboard showing lead counts and who to follow up with today. All names are invented.

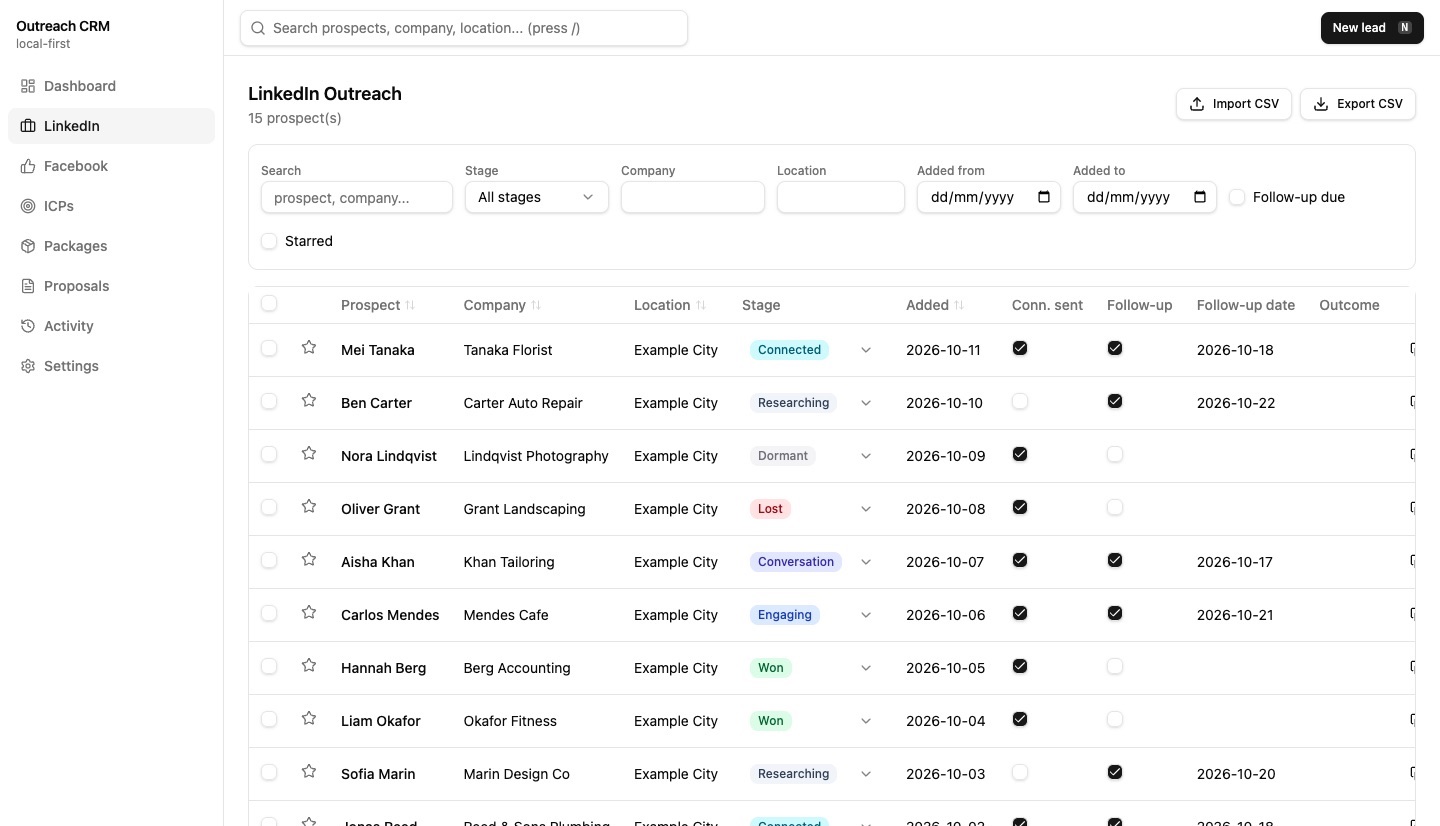

A table of sample prospects, each with a coloured stage label and a next follow-up date.
Real screen, sample data A list of sample prospects with a coloured stage on each and the next follow-up date. All names are invented.

A day of outreach

  1. Maya adds a new contact

    She meets someone online and saves their name, company and a note in a quick form.

  2. She moves them along the stages

    As the chat goes from first hello to a proposal, she updates the stage so nothing is lost.

  3. Each morning she sees who is due

    The dashboard lists everyone she planned to follow up with today.

  4. She finds anyone in a moment

    One search box looks through names and companies, so nothing gets lost.

  5. Her AI assistant can help too

    An assistant can read and update the same records for her, so she does not have to do it all by hand.

The challenge

Social outreach on professional and community networks is often tracked in ad-hoc spreadsheets. Follow-ups slip, and there is no single view of stage, templates or proposals.

Hosted CRMs bring cost, setup and data-residency concerns for a single user. A second requirement is that an AI assistant can read and update the pipeline without touching the database file.

The solution

One Node process serves both a React UI and a Fastify REST API from a single port, storing data in a local SQLite file that migrates itself.

Each outreach channel is declared as a resource definition, and the API, schema endpoints, OpenAPI document, CSV routes and meta map are generated from a registry. The UI offers per-channel tables, record detail pages, a dashboard, an activity timeline, search, follow-ups due today, and ICP, package and proposal modules.

For your technical teamhow it works under the hood

How an assistant discovers and uses the API

How an assistant discovers and uses the APISequence diagram with three participants: an AI assistant or script, the Fastify API built from the resource registry, and the SQLite file. Step 1: the assistant asks for the meta and OpenAPI endpoints and receives the resources, fields and OpenAPI document. Step 2: the assistant posts a new record; the API validates it with Zod, inserts the row and logs an activity entry, then returns a success envelope. Step 3: the assistant asks for follow-ups due today; the API queries SQLite and returns the matching records.AI assistant or scriptreads meta, then calls RESTFastify APIbuilt from the resource registrySQLite filelocal, via Drizzle ORM1GET /api/meta and /api/openapi.jsonresources, fields, OpenAPI document2POST /api/linkedincheck with Zod, insert row, log activitysaved rowsuccess envelope with the record3GET /api/followups/todayquery follow-ups that are duematching rowsrecords due today
The assistant learns what exists from the meta and OpenAPI endpoints, then uses the same REST routes as the interface. Solid arrows are requests; dashed arrows are replies.

Key features

What the system does, as built in the codebase.

  • 01

    Channel pipelines with stages

    Separate lead tables for two social channels, with stage tracking and customizable stage colors.

  • 02

    Proposal modules

    ICPs, service packages and proposals, added in a second migration.

  • 03

    Self-describing API

    A meta endpoint and an OpenAPI 3.1 spec list every resource and field.

  • 04

    Follow-up engine

    A cross-resource query of items due today.

  • 05

    CSV import and export

    Available for every resource.

  • 06

    Backup and restore

    Back up and restore the database file.

  • 07

    Search, timeline and dashboard

    Global search, an activity timeline and dashboard metrics.

  • 08

    Productivity UI

    Data table, filter bar, bulk actions, quick-add dialog and keyboard shortcuts.

How it fits together

From a resource definition to an API that people and assistants share.

  1. React UIVite + Tailwind
  2. Fastify APIone port, static + REST
  3. Resource registrydefinitions drive routes
  4. Drizzle ORMtyped queries
  5. SQLite filelocal, backup/restore
The React UI calls a Fastify API on one port. The API is generated from a registry of resource definitions and reads and writes a local SQLite file through Drizzle ORM.
  • Assistants and scripts discover resources via the meta and OpenAPI endpoints, then call the same REST routes as the UI.

Implementation notes

Engineering decisions worth knowing about.

  1. Registry pattern

    A new outreach channel is one resource definition added to a registry list, so generic routes, schema, OpenAPI and CSV endpoints need no per-channel code. A table migration is still needed.

  2. Shared CRUD layer

    A generic CRUD layer is shared by all resources, with Zod schemas per module.

  3. Typed data access

    Drizzle ORM over libSQL, with SQL migrations applied automatically.

  4. Uniform responses

    All endpoints use one success and error response envelope.

  5. Single-process deployment

    The backend serves the built frontend, so there is one thing to run.

  6. Component primitives

    Radix UI primitives with Tailwind 4 build the interface.

Technology stack

Taken from the project's dependency and config files.

Frontend
  • React 19
  • React Router
  • Tailwind CSS 4
  • Radix UI
  • Vite
Backend
  • Node.js
  • TypeScript
  • Fastify
  • Zod
Data
  • SQLite via libSQL
  • Drizzle ORM
Tooling
  • oxlint
  • tsx
For your technical teamtechnology layers

Technology layers, interface to tooling

Technology layers, interface to toolingLayered diagram of the stack. Frontend: React 19, React Router, Tailwind CSS 4, Radix UI, Vite. Backend: Node.js, TypeScript, Fastify, Zod. Data: SQLite via libSQL and Drizzle ORM. Tooling: oxlint and tsx.Frontendserved by the same processReact 19React RouterTailwind CSS 4Radix UIViteBackendone Node process, one portNode.jsTypeScriptFastifyZodDatalocal file, self-migratingSQLite via libSQLDrizzle ORMToolinglint and runoxlinttsx
The interface, API and data layers all run from one Node process over a local SQLite file. Tooling sits alongside for linting and running TypeScript.

Business value

What the system enables. No numbers are claimed.

  • Gives a solo operator a private pipeline with no subscription or hosting.
  • Surfaces what is due today across channels so follow-ups are less likely to slip.
  • Lets an AI assistant automate record keeping through a documented API.
  • Makes adding a new outreach channel a small change.
